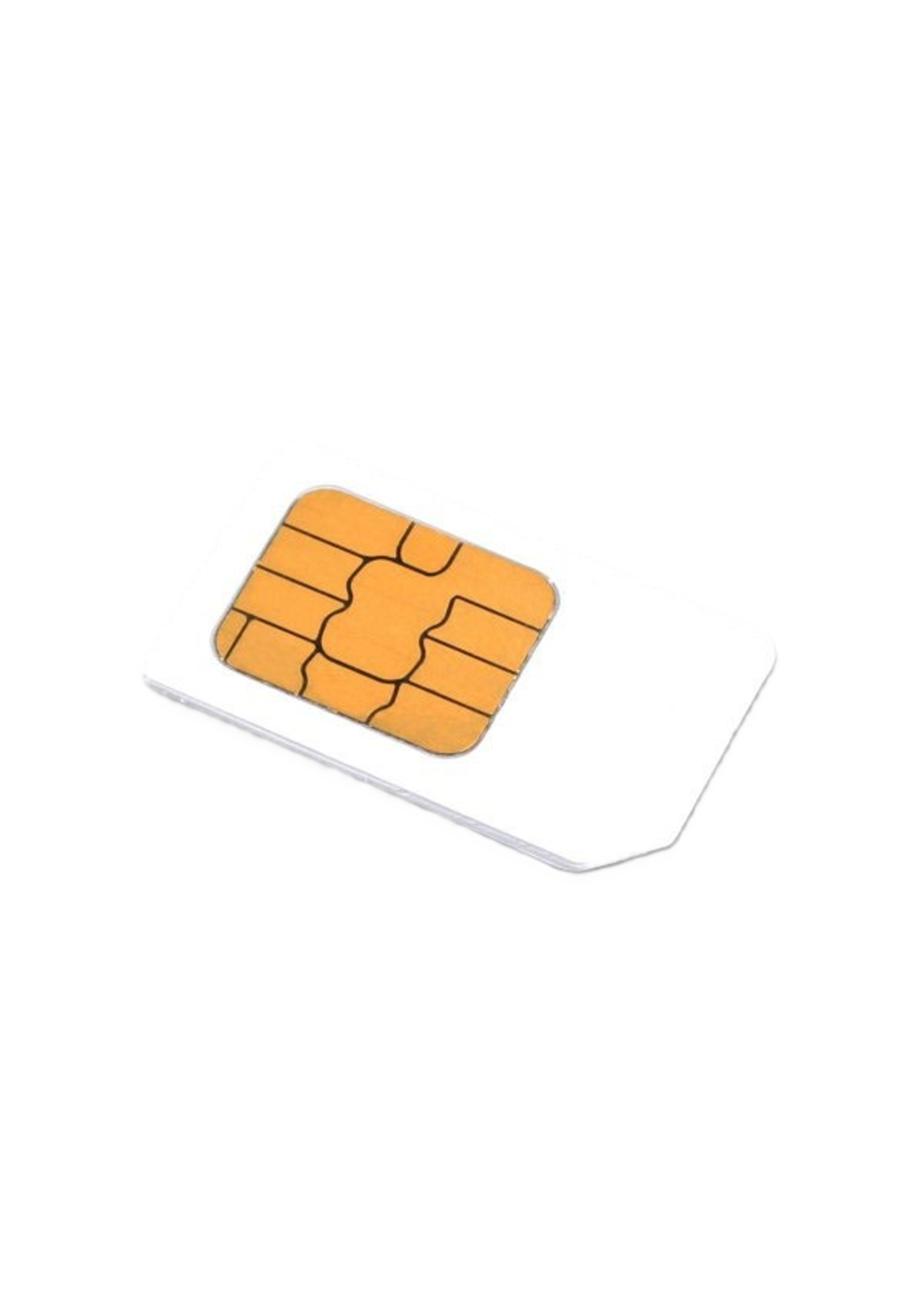

SIM Card: MIFARE & EV1 Secure Memory for SP/HIP Reader

Overview

Known for its quality and versatility, the WAVE ID Plus family of credential readers now includes a model specifi cally designed to snap on to Ricoh’s Gen 2.5 Smart Operation Panel, providing a seamless secure print solution. The WAVE ID Ricoh Universal SOP Reader:

• Off ers snap-on, plug-and-play compatibility with Ricoh
• A3 Colour (IM C2000(A), IM C2500(A), IM C3000(A), IM C3500(A), IM C4500(A), IM C5500(A), IM C6000)
• Seamlessly fi ts the A3 printer’s Smart Operation Panel (Gen 2.5) side slot without impeding the device’s full up and down tilt range* for an integrated look and feel
• Includes a Secure Access Module (SAM) slot to support iCLASS® ID®/SE®/SEOS® or MIFARE® Secure Memory
• Bluetooth® Low Energy technology version supports
• Orange and WAVE ID digital/mobile credentials
• Plug-and-play with Streamline NX and 3rd party secure print software
• No external mounting required and no visible cables

Simple, Secure Authentication for All Ricoh MFP Users

The Smart Operation Panel is an Android-based, tablet-style control panel that enables simple yet powerful operation of Ricoh’s advanced multifunction printers. Our WAVE ID Ricoh Universal SOP Reader features a specially designed housing that snaps directly in place of the cover door for the USB port, providing a simple way to add credential-based authentication and access. By eliminating the need to manually enter PIN codes and passwords, the credential reader streamlines user workflows and improves printer security for healthcare, government, manufacturing and other enterprises.

The WAVE ID Ricoh Universal SOP Reader offers an extensive feature set. It supports four credential configurations, with two preset configurations and all four configurations user-definable.

An auto-tuning of 13.56 MHz antenna ensures optimum performance in virtually any environment. The user-selectable volume control includes a beeper on/off setting—ideal for noisy locations and those where quiet is important for comfort and productivity. A Secure Access Module (SAM) slot supports iCLASS ID/SE/SEOS or MIFARE Secure Memory. The BLE reader is capable of supporting Bluetooth Low Energy technology for mobile credentials and enables future upgrades as organizations change their credentials.

The Most Versatile Reader Available

As a member of the world’s most versatile family of credential readers, the WAVE ID Ricoh Universal SOP Reader supports both proximity and contactless technologies and the everincreasing number of mobile credentials in a single reader.

With the ability to hold four credential configurations, the WAVE ID Plus family is the perfect solution for growing organizations that wish to seamlessly integrate different credential technologies—now and in the future. Able to read virtually any credential type used around the world, the WAVE ID Ricoh Universal SOP Reader is the most powerful, robust reader available for secure print applications. For simplicity, security and elegance, it’s the ultimate complement to the innovative, award-winning Smart Operation Panel on Ricoh multifunction printers.
