RDR-30M31EKU-TSLA WAVE ID Mobile Mini Keystroke MIFARE Secure Tesla Black USB reader

Article number: RDR-30M31EKU-TSLA

€374,00

Excl. tax

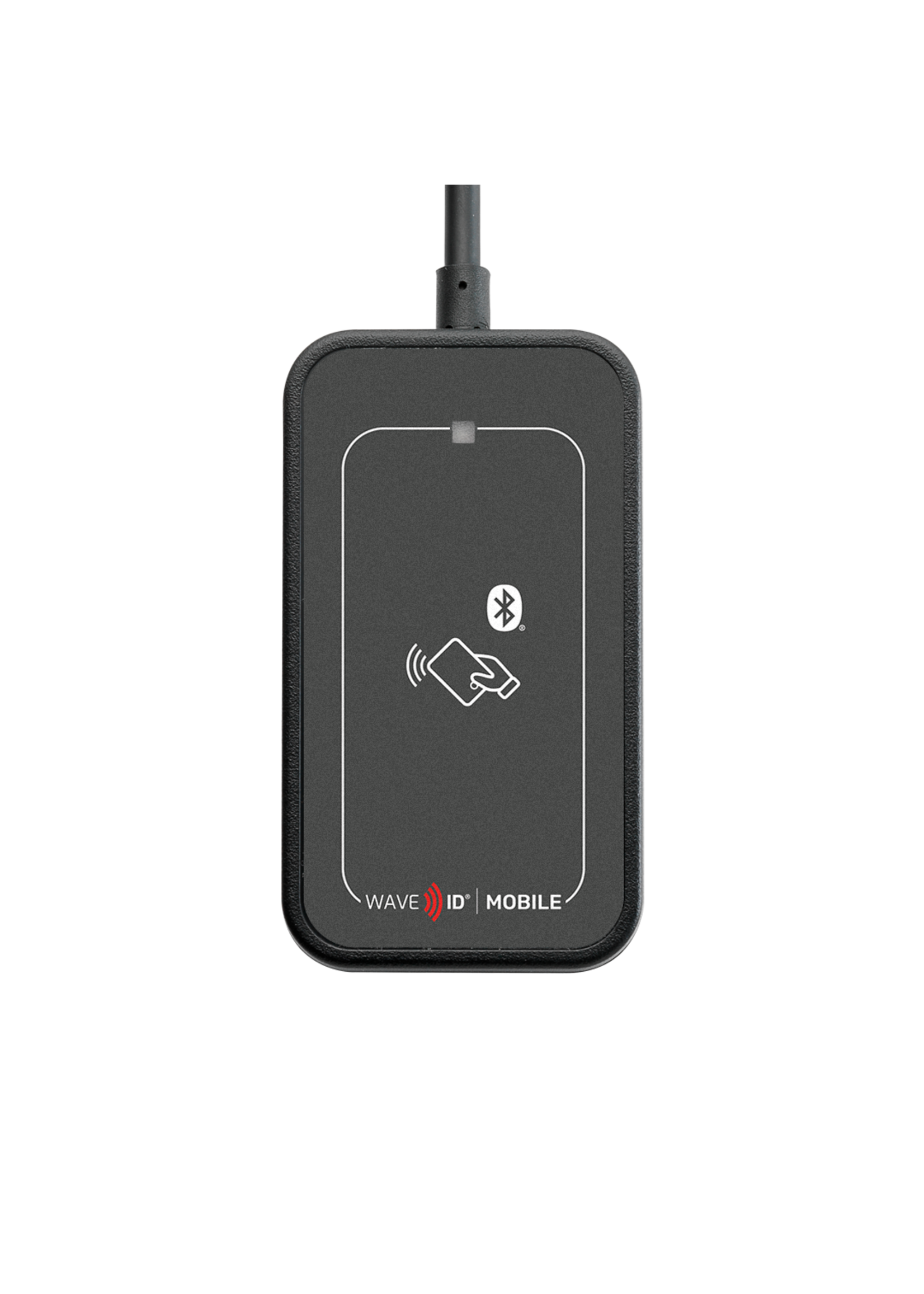

WAVE ID® Mobile Mini Reader
This dual-frequency reader offers Bluetooth® low energy technology for reading proximity (125/132 kHz) or contactless smart cards (13.56 MHz) and mobile credentials.

WAVE ID^® Mobile Mini Reader

This dual-frequency reader offers Bluetooth^® low energy technology for reading proximity (125/132 kHz) or contactless smart cards (13.56 MHz) and mobile credentials. With a dual card reader and Bluetooth low energy module in one device, installation only requires one USB port—freeing additional ports for other peripherals. Four credential configurations (up to three card types and one mobile) accommodate multi-card environments, with the added flexibility of using smartphones for authentication. A user-selectable volume control includes a beeper on/off setting for noise-sensitive areas.

FEATURES

WAVE ID Mobile Mini readers offer seamless integration with existing reader networks
Eliminate the need for additional badges or readers while increasing the number of applications
Emulates keyboard by keystroking badge information into a standard text editor
No additional software required for integration with most common operating systems
All applications are compatible with USB keyboard inputs

BENEFITS

Eliminate the need to manually enter usernames and passwords with simplified authentication
Use existing proximity card or contactless smart card systems
Sync with mobile devices for applications far beyond basic door access
Eliminate errors and streamline workflows through instant identification and authentication
Specifications
Product Resources
List of SKU's

Operating Conditions

Operating Frequency: 125 kHz or 13.56 MHz; 2.4 GHz (BLE)
Supported Card Types: Supports nearly all physical card types worldwide; contact rf IDEAS for specific card type questions

Physical Characteristics

Model number: RDR-30531EKU Mini Desktop Keystroking Reader
Dimensions: 2.9 in × 1.7 in × 0.5 in(7.4 cm × 4.2 cm × 1.3 cm)
Weight: 3 oz(86 g)
Cable Length: 6’ standard; 6” and 16” lengths available
Indicators: LED indicator (green, amber, red)
Form Factor: Desktop
Power Supply: USB powered
Software Development Kit (SDK): No

Environmental Usage

Operating Temperature Range: 248℃ to 338℃ (-13℉ to 149℉ )
Operating Humidity Range: 5% to 95% relative humidity, non-condensing
Storage Temperature Range: 233℃ to 358℃ (-40℉ to 185℉ )

General Information

Certifications: FCC-United States; CE Mark-Europe; RCM-Australia; IC-Industry Canada; UL Environmental: RoHS, REACH. For more information on other global certifications, contact [email protected].
Warranty: One year for material/workmanship defects. See complete policy for details.
Compatible Operating Systems: Windows XP^®, 7^®, 8.1^®, 10^® and Linux^®

Additional Information

BLUETOOTH FEATURES

Mobile Credentials Supported: Orange PACK ID^®; WAVE ID^® Mobile; PSIA PKOC
BLE Beaconing: Configurable for Eddystone, Alt Beacon and iBeacon (requires the WAVE ID Mobile Configurator utility)
Supported Protocols: Bluetooth 5.3
