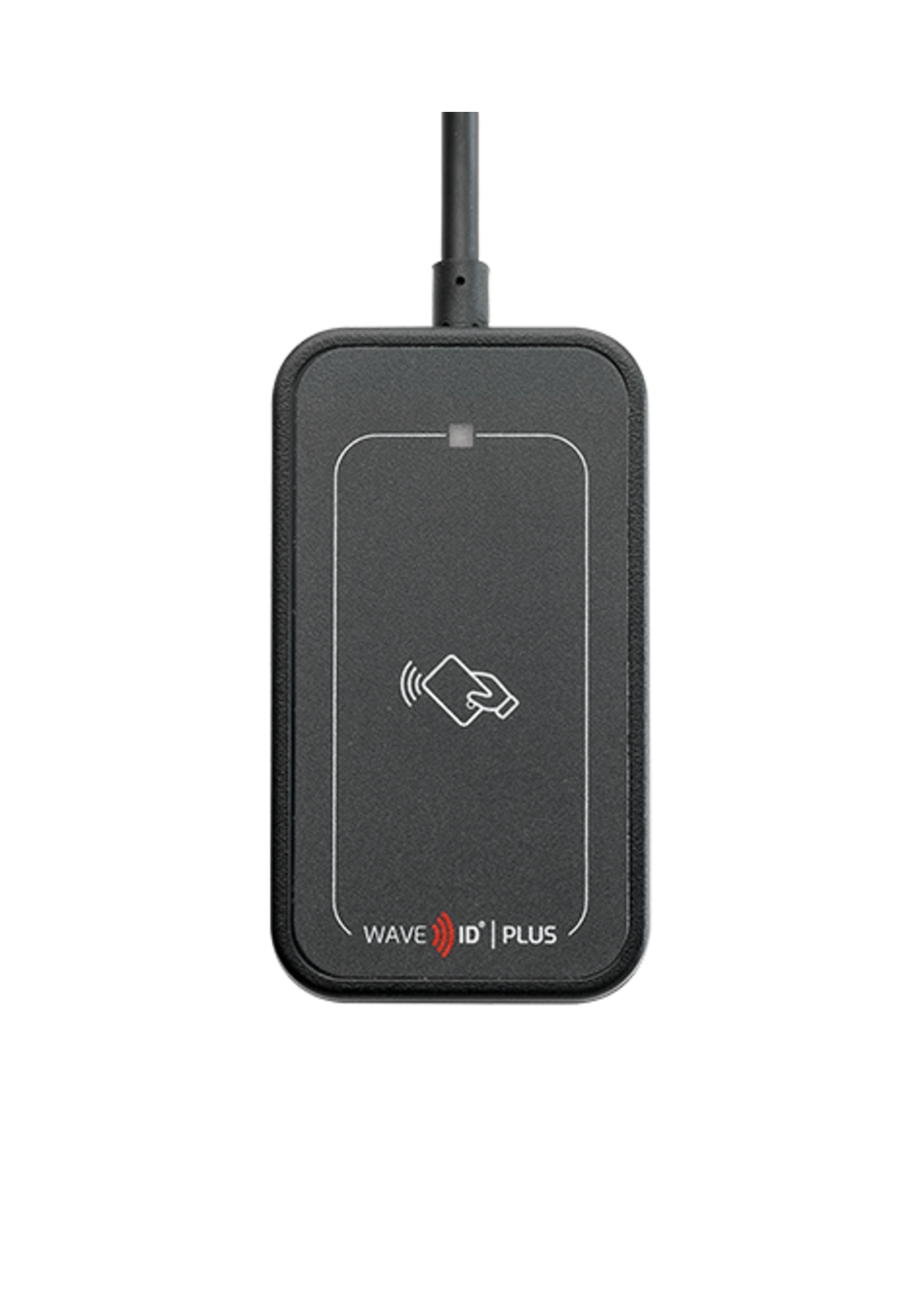

WAVE ID Plus Mini Keystroke

Our smallest and most capable desktop reader yet supports nearly all proximity and contactless credentials worldwide.

The small yet powerful credential reader has an extensive feature set that includes:

• Four ID card configurations (2 are pre-set and all four are user definable)
• Auto-tuning for 13.56 MHz antenna to optimize performance in various environments
• User-selectable volume control including a beeper on/off setting
• Support for iCLASS® ID, SE and Seos® (800 models only)
• New compact and modern design
• Articulated cable and rubber feet provide secure desktop placement

The versatile WAVE ID Plus Mini reader combines proximity and contactless technologies into one reader that has the ability to hold four card configurations, enabling growing organizations to seamlessly integrate different ID card technologies. These credential readers are designed for customers seeking to leverage their existing card system for applications beyond building access.

Developed to read virtually any proximity or contactless card type in the world, the WAVE ID Plus Mini is the most powerful, robust reader on the market for identification, authentication, and access applications. Credential-based reader solutions eliminate the need to manually enter user names andpasswords, streamlining workflow and eliminating errors for identification.

The WAVE ID Plus Mini reader easily integrates into existing card access systems, allowing companies to leverage the same cards they use to get into the building for countless applications involving logical access to network, software applications, and equipment. Connecting directly into the USB port, the reader emulates keystrokes of the USB model card data on the login screen. Its plug-and-play functionality requires no software for seamless integration with common operating systems and applications.

Software Developer Kits (SDKs) allow independent programmers to develop and enable their applications with the ability to read ID card identifi cation information directly off any of the proximity, contactless or magnetic swipe cards in use today. Software developers can easily create a solution that leverages the use of employee ID card data, resulting in added benefi ts to their applications such as single sign-on, QA tracking, cashless cafeteria, industrial vending or attendance.

STANDARD FEATURES

RDR-80531BKU, WAVE ID Plus Mini Black Keystroke USB Reader RDR-80532BKU, WAVE ID Plus Mini Black SDK USB Reader RDR-80031BKU, WAVE ID Plus Mini w/iCLASS SE & Seos Black Keystroke USB Reader RDR-80032BKU, WAVE ID Plus Mini Black w/iCLASS SE & Seos SDK USB Reader

• Length 2.9" (74mm);
• Width 1.7" (42mm);
• Height 0.5" (13mm) 2.5 ounces (72g) with a 6' cable
• Black (gray inlay)
• LED indicator;
• Adjustable beeper volume (off, low, medium, high) Desktop
• USB self-powered
• 65 mA typical, 185 mA maximum
• -13o to 150oF (-25o to 65oC)
• 5% to 95% relative humidity, non-condensing -40o to 185oF (-40o to 85oC)
• FCC-United States; CE Mark-Europe; RCM-Australia; IC-Industry Canada; UL Environmental: RoHS, REACH
• Windows XP®, 7®, 8®, 10® and Linux (Ubuntu, Red Hat), macOS and Android (keystroking and SDK only) rf IDEAS Configuration Utility and Smartcard Manager Utility, available on rf IDEAS support page Supports nearly all card types worldwide. Visit rfIDEAS.com for full list of supported card types.

Contact rf IDEAS for other options



Product Brochure

https://cdn.webshopapp.com/shops/25475/files/391831217/wave-id-plus-mini-pa-138.pdf



Card Support

HID^™ Prox, AWID, CASI-RUSCO, Honeywell Nexwatch, Indala, Kantech ioProx, HID^™ iCLASS^™ CSN, HID^™ iCLASS, HID^™ iCLASS SE^™, HID^™ iCLASS Seos^™, ISO 14443A CSN, ISO 14443B CSN, ISO 15693 CSN, MIFARE^® Classic CSN, MIFARE^® DESFire^® EV1 CSN, MIFARE^® Plus CSN, MIFARE^® Ultralight CSN, aptiQ^™ MIFARE^® CSN, Bosch ReadyKey Pro UID, Cardax UID, CDVI, CEPAS CAN, Corbin Russwin^® UID, Cotag, DIGITAG, Dimpna UID, Farpointe Data Pyramid, Farpointe Data Pyramid UID, GProx-II ID, GProx-II UID, HiTag 1 CSN, HiTag 2 CSN, HiTag S CSN, Infineon my-d^™ CSN, ISONAS^™, I-tag CSN, Keri KC-10x UID, Keri KC-26x, Keri NXT UID, NEDAP Prox, NFC Type 2 CSN, NFC Type 4 CSN, NXP ICODE^® SLI CSN, Oyster CSN, Paradox, Postech, RF Logics UID, Rosslare, SecuraKey e*tag^® CSN, SecuraKey-02 Radio Key^®, Texas Instruments Tag-It CSN, Urmet, XceedID^® MIFARE^® CSN, EM 410x (4100/4102/4105/4200), NFC Type 3 CSN (Felica), LEGIC Advant CSN (ISO 15693 / 14443A), NFC Type 1 CSN (Topaz), TechnoGym (Key Fob) CSN, ID Teck (128 Bits)
